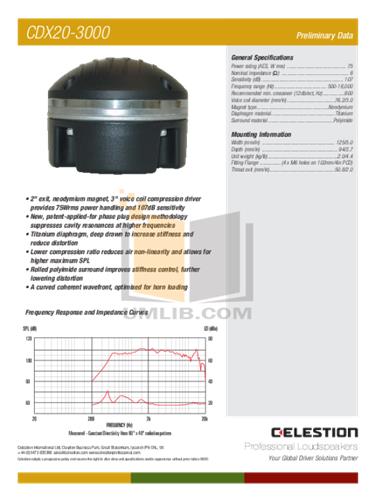

CELESTION CDX20-3000

Descripción

CDX20-3000

- 2" exit, neodymium magnet, 3" voice coil compression driver provides 75Wrms (AES standard) power handling and 107dB sensitivity
- Patented phase plug design method suppresses cavity resonances at higher frequencies
- Titanium diaphragm, deep drawn to increase stiffness and reduce distortion
- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
- Rolled polyimide surround improves stiffness control, further lowering distortion
- Curved coherent wavefront, optimised for horn loading

8O Frequency Response and Impedance Curves

- Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
- Continuous Power Handling is defined as 3dB greater than the AES rating.
- Measured on axis at 1W, 1m, using typical horn, in 2? anechoic environment.
General SpecificationsPower rating175WrmsContinuous power rating2150WNominal impedance8O / 16OSensitivity3107dBFrequency range500-18,000HzRecommended min. crossover (12dB/oct)800HzVoice coil diameter75mm/3inVoice coil materialEdgewound copper clad aluminiumMagnet typeNeodymiumDiaphragm materialTitaniumSurround materialPolyimideMounting InformationMaximum width125mm/5.0inDepth94mm/3.7inWeight2.0kg/4.4lbFittingFlange (4 x M6 holes on 102mm/4in PCD)Throat exit50.8mm/2inPacked Dimensions & WeightSingle pack size W x D x H140mm x 135mm x 112mm/5.5in x 5.3in x 4.4inSingle pack weight2.4kg/5.3lbMulti pack size W x D x H500mm x 365mm x 145mm/19.7in x 14.4in x 5.7inMulti pack weight13.5kg/29.7lb
