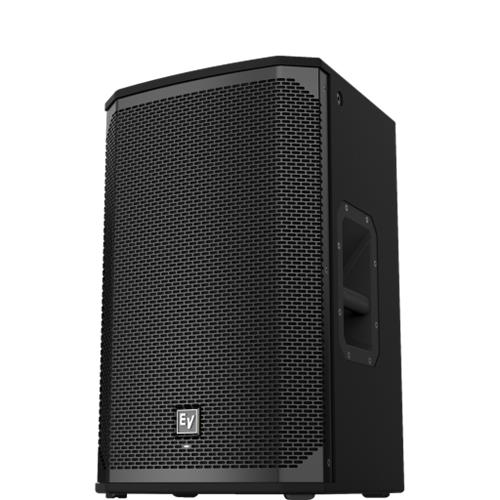

ELECTRO VOICE EKX-12P 12" powered loudspeaker

Descripción

EKX-12P
12" powered loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

SPECIFICATIONS
Frequency Response (-3 dB) 60 Hz - 18 kHz¹
Frequency Range (-10 dB) 50 Hz - 20 kHz¹
Maximum SPL 132 dB²
SPECIFICATIONS
Coverage (H x V) 90" x 60"
Power Rating 1500 W
LF Transducer EVS-12M 300 mm (12 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 kHz
Connectors (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Dimensions (H x W x D) 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)
Net Weight 18.8 kg (41.4 lb)
Shipping Weight 22.9 kg (50.4 lb)
Power Consumption 1.8 A³
