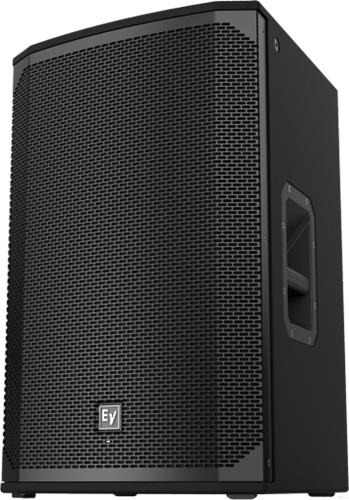

ELECTRO VOICE EKX-15P 15" powered loudspeaker

Descripción

EKX-15P
15" powered loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

SPECIFICATIONS
Frequency Response (-3 dB) 55 Hz - 18 kHz¹
Frequency Range (-10 dB) 48 Hz - 20 kHz¹
Maximum SPL 134 dB²
SPECIFICATIONS
Coverage (H x V) 90" x 60"
Power Rating 1500 W
LF Transducer EVS-15M 381 mm (15 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 kHz
Connectors (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Dimensions (H x W x D) 685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in)
Net Weight 24.4 kg (53.9 lb)
Shipping Weight 29.5 kg (65.0 lb)
Power Consumption 1.8 A³
